MKC-750UHD: 4K 3CMOS SMALL COLOUR CAMERA SYSTEM – 4K High Resolution model
- Ikegami
Specialty
Endoscopic Imaging and High-Resolution Visualization
- Product Type: 4K CMOS Medical Camera System
- Product Range: Advanced Medical Imaging Solutions

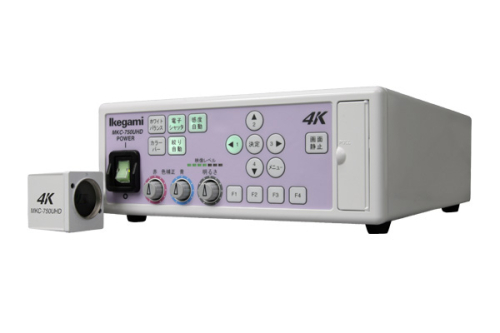

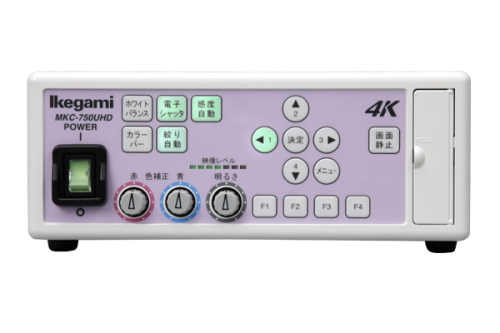

The Ikegami MKC-750UHD is a compact and lightweight 4K camera designed to deliver exceptional imaging performance in surgical and endoscopic applications. Featuring advanced 12G-SDI and HDMI outputs, high sensitivity, and digital image processing, the MKC-750UHD provides outstanding clarity and color reproduction, enabling clinicians to capture even the finest anatomical details during procedures.
Key Features
4K UHD Resolution
Delivers 3840×2160 imaging with 1600 TVL horizontal resolution and high S/N ratio for outstanding clarity.
Antibacterial Coating
Enhanced infection control on both camera head and CCU.

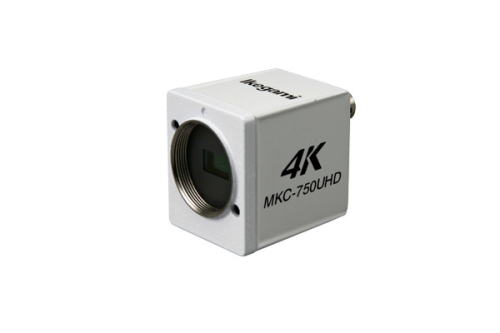

Compact Camera Head
Lightweight design ideal for surgical microscope and endoscope integration.
Specifications
4K UHD Resolution, 3840×2160 imaging with 1600 TVL horizontal resolution and high S/N ratio
F11 at 2000 lx

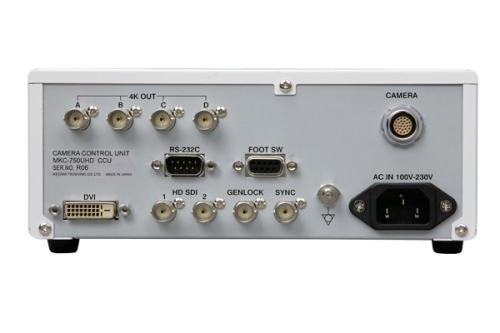

12G-SDI, HDMI 2.0, Quad Link 3G-SDI, HD-SDI and DVI support
TPX 3D product video
Brochures
fAQs
What makes the MKC-750UHD unique compared to standard HD cameras?
It delivers true 4K UHD resolution, quadrupling detail over conventional HD, while
remaining compact and lightweight.
Can it be integrated with surgical microscopes?
Yes, with the dedicated surgical microscope adaptor, it integrates seamlessly.
Does it support digital image control features?
Yes, it includes image inversion, digital zoom, freeze function, and auto gain for optimized
imaging.
