MLW-2627C-DC: 26″ HIGH DEFINITION COLOUR LCD WIDE MONITOR – High brightness model

Ikegami

Specialty

Surgery, Endoscopy, Imaging Diagnostics

Product Type: Medical-Grade Full HD Monitor
Product Range: Surgical Displays

The Ikegami MLW-2627C/DC is a versatile medical monitor designed to deliver superior image clarity and reliability for surgical and diagnostic environments. Equipped with an advanced IPS panel, energy-saving LED backlight, and multiple viewing modes, it provides clinicians with consistent, high-quality visualization to support a wide range of medical applications.

Key Features

Multi-Input Compatibility

Multiple port types for integration with common scope systems

Dual-Screen Display

Enables simultaneous picture display from multiple inputs

Specifications

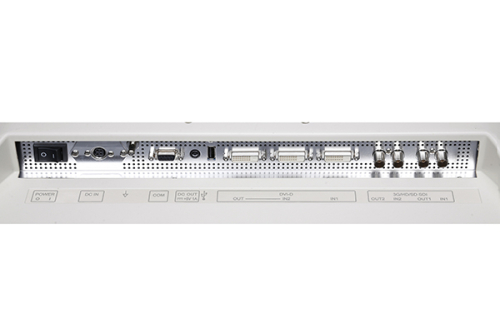

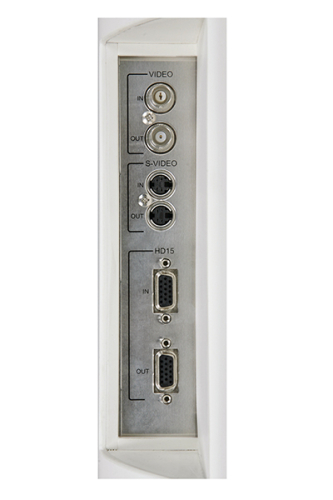

Input Signals

HD-SDI (1.5G, 3G) / SD-SDI x2, DVI x2,
VBS x1, S-Video x1, HD15 x1

Dimension & Weight

W640 x H405 x D84mm, 8kg

LCD Panel & Brightness (Max)

26-inch, 900cd/m²

Power Consumption

100W

Function

Picture-in-Picture / Picture-and-Picture
(multi combination with SDI, DVI and others), Flip (Invert screen), Dynamic Image Contrast Enhancer, Hyper Image Enhancer

TPX 3D product video

Brochures

fAQs

What type of panel does the MLW-2627C/DC use?

It features a 10-bit IPS panel with LED backlight, wide viewing angles, and smooth gradation support.

Can the monitor display multiple signals at once?

Yes, it supports side-by-side and picture-in-picture display modes.

How many presets can be saved?

Up to eight user-defined display and image adjustment presets can be stored and recalled.

Is there an image comparison function?

Yes, it allows comparison of live video with a saved still image on screen.

What makes it easy to use?

The monitor includes a touch switch and customizable function key for intuitive operation.
