Gynaecology CO2 Laser

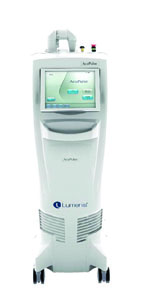

Lumenis AcuPulse 30/40 ST

AcuPulseDUO

AcuPulse 30/40 ST
The foundation to precise CO2 Laser surgery

AcuPulse 30/40 ST system is designed to transmit the CO2 Laser energy via an articulated arm. This system allows you to leverage on the clear benefits of the CO2 Laser technology all the way to the desired clinical outcome. Create your own matrix for desired tissue interaction by utilizing the systems’ wide range of parameters, different lasing modes, and beam exposure times.

The AcuPulse 30/40 ST is an upgradeable platform that can help you address a wide range of clinical challenges in the operating sphere. All AcuPulse laser systems feature SuperPulse, Pulser and Continuous Wave (CW) laser modes for low, moderate and higher thermal effects on tissue. The AcuPulse 30/40 ST systems are compatible with a variety of microscopes models and are fully compatible with all Lumenis free beam accessories including the Digital AcuBlade scanning Micromanipulator.

Clinical Indications
The adaptability of the AcuPulse platform allows you to address a broad range of clinical indications in the operating room and in the outpatient environment. Lumenis provides you with a full suite of CO2 FreeBeam accessories that are designated to precisely target the desired line-of-sight anatomy and to address delicate clinical indications related to Head and Neck, Otology, Gynecology, and general surgery pathologies.

AcuPulse 30/40 ST Unique Features

  • Three power and time exposure modes that enable customized energy delivery for optimal tissue management:
    • CW – Steady, continuous beam of energy. Optimal for when coagulation is desirable
    • PULSER – Constant frequency with variable pulse length yields the desired average power
    • SUPER PULSE – Continuous series of short duration, high peak power pulses. Optimal for char free outcome
  • Advanced, electronically controlled air management system.
  • Embedded procedure and assembly videos in the user interface.
  • 99 memories can be integrated and saved on the system for varied users.

CO2 Free Beam accessories are uniquely compliant with Lumenis free-beam surgical CO2 laser models that direct the laser energy through an articulated arm: UltraPulse DUO, UltraPulse, AcuPulse DUO, and AcuPulse. AcuPulse DOU Brochure

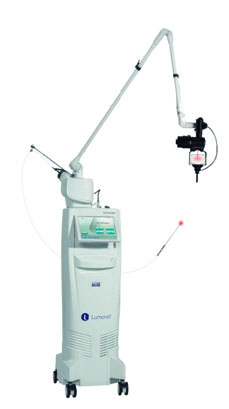

Lumenis AcuPulse DUO

AcuPulseDUO

AcuPulse DUO
The versatility to choose the right treatment for your patient

AcuPulse DUO CO2 laser, a unique combination of CO2 laser fiber and free beam energy delivery in a single device. With the ability to utilize the two valuable modalities on the same Laser console there is no need to compromise. Maximal versatility is provided to choose the exact parameters and seamlessly alternate between the delivery modes and gain the desired laser-tissue interaction. The precision of the Digital AcuBlade alongside the flexibility of the fiber allows you to address surgical challenges and to treat valuable anatomy with extra delicacy, resulting in virtually char free margins and minimal thermal necrosis.

Dependable and flexible CO2 Laser fiber enabling easy access to difficult to reach areas thus providing you with more delicate treatment options. This handheld Fiber, that includes valuable aiming beam, is easily adopted in the surgical sphere and demonstrates a short learning curve.

The Free Beam CO2 Laser is delivered via designated surgical tools such as the Digital AcuBlade Micromanipulator with SurgiTouch scanner. Those deliver laser energy inside a user-defined geometric shape. The rapid motion of the scanner takes the energy delivery and the entire operation to its highest precision level.

Clinical Indications

The versatility of the DUO module extends your surgical capabilities and allows you to address a broad range of clinical indications in the operating room and in the outpatient environment. Lumenis provides you with a full suite of CO2 laser fiber and free beam surgical tools that are designated to precisely and delicately address clinical indications related to Head and Neck, Otology, Gynecology and general surgery pathologies.

AcuPulse DUO Unique Features

  • Seamless alternation between the CO2 laser FreeBeam and Fiber delivery modes
    Three power and time exposure modes that enable customized energy delivery for optimal tissue management:
    • CW – Steady, continuous beam of energy. Optimal for when coagulation is desirable
    • PULSER – Constant frequency with variable pulse length yields the desired average power
    • SUPER PULSE – Continuous series of short duration, high peak power pulses. Optimal for char free outcome
  • Advanced, electronically controlled air management system.
  • Embedded procedure and assembly videos in the user interface.
  • 99 memories can be integrated and saved on the system for varied users.

AcuPulse DUO Brochure

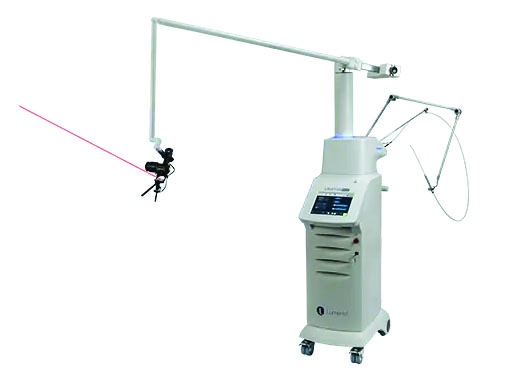

Lumenis UltraPulse DUO CO2 Surgical Laser

UltraPulse

UltraPulse® DUO CO2 Surgical Laser
Achieve the Master’s Touch
When it comes to precision and high-end performance, UltraPulse CO2 surgical laser is the ultimate solution. Now, Lumenis brings to you the UltraPulse DUO, a CO2 laser system that caters to physicians and surgical centers who demand excellence from themselves and their laser system. The UltraPulse DUO was meticulously developed with physicians and based on decades of accumulated experience and the Lumenis innovative approach, to meet a growing number of clinical challenges today.

The UltraPulse DUO system is designed to deliver CO2 laser energy via an articulated arm or through a Lumenis CO2 laser fiber. With UltraPulse DUO you don’t have to compromise – you can have the precision you desire as well as access to hard-to-reach anatomies.

UltraPulse DUO is an advanced computer-controlled, user-friendly CO2 pulsed laser platform. It is based on a patented sealed-off CO2 laser tube providing up to 60 Watts of power. It can generate a continuous series of short-period, high-peak-power pulses. During the high peak power, the laser energy is delivered very rapidly resulting in vaporization of the targeted tissue without the creation of collateral injury.

The Lasing modes (UP and CW) can be alternated according to the desired tissue interaction while the three exposure modes (Repeat, Single & continuous) will allow comprehensive timed-controlled energy delivery.

The Lumenis UltraPulse DUO is the CO2 surgical laser system that allows surgeons to achieve the Master’s Touch.

Clinical Indications

The versatility of the DUO module extends your surgical capabilities and allows you to address a broad range of clinical indications in the operating room and in the outpatient environment. Lumenis provides you with a full suite of CO2 laser fibers and free beam surgical tools that are designated to precisely and delicately address clinical indications related to Head and Neck, Otology, Gynecology and general surgery pathologies.


UltraPulse DUO Unique Features

  • Combining Unparalleled Precision with Flexibility: UltraPulse DUO CO₂ surgical laser combines the unparalleled precision of the Digital AcuBlade™ Scanning Micromanipulator with the flexibility of the FiberLase CO₂ laser fiber. Seamlessly alternate between the CO₂ energy deliveries to ensure individualized patient care.
  • Address unexpected challenges: With the vital combination of precision and flexibility, you can be prepared to address unexpected challenges during a procedure. The comprehensive set of tools enables a complete operation without the need for additional procedures and hospitalization.
  • Experience clear and char-free margins: clear pathological outcomes as a result of adequate margin visibility. Clear and clean margins are a true value in pathology and a top goal in today’s operating room.
  • Smart tissue management: High preservation of adjacent delicate tissue results in fewer adverse events, adhesions and quicker recovery time.
  • Progress to the outpatient environment: Expand out of the traditional OR setting and periodically treat on recurring conditions under local anesthesia in the outpatient setting.

UltraPulse DUO Brochure

Lumenis CO2 Free Beam Laser Accessories

CO2 Free Beam Laser

CO2 Lasers Free Beam Accessories for Head & Neck
Precise and Reproducible performance

As the CO2 Laser market pioneer in the Head & Neck specialty, Lumenis has been developing over the years a very wide range of FreeBeam accessories that are tailor made to the designated anatomy and all are based on surgeons’ feedbacks and requirements.
The comprehensive variety of CO2 laser accessories for Head & Neck are designed for incision, excision, vaporization and ablation of soft tissue in the ear, nasal cavity, oral cavity, pharynx, larynx and upper trachea. The CO2 laser parameters and delivery modes can be adjusted to allow precision and simultaneous microvascular hemostasis. In Head & Neck, the Lumenis CO2 laser has become the hallmark of precision in delicate spaces with minimal thermal damage.

Micromanipulators Coupled To Surgical Microscopes

For CO2 laser microsurgery, free-beam surgical CO2 lasers are used with micromanipulators coupled to surgical microscopes.

The invisible carbon dioxide laser treatment beam and the red helium-neon laser aiming beam are focused at the same working distance as the microscope. The micromanipulator has a gimbaled mirror, situated in the view path of the surgeon, to direct the laser beams onto the tissue site. The surgeon manipulates a joystick to tilt the mirror and direct the laser beam precisely onto the desired target tissue.

To accommodate the physical dimensions of various microscopes, there are few models of the AcuSpot micromanipulator. Each is compatible with different microscope models (in example: Zeiss and Leica microscopes)

Digital AcuBlade Scanning Micromanipulator

The Digital AcuBlade Micromanipulator with SurgiTouch scanner delivers laser energy inside a user defined geometric shape. The rapid motion of the scanner, faster than a human hand can produce, takes the energy delivery and entire operation to its highest precision.

When the goal is to treat the pathology within the organ with maximum efficacy, while preserving organ functionality and minimizing adjacent healthy tissue damage, the Digital AcuBlade micromanipulator is an indispensable tool that can be used to safely incise, excise or ablate tissue, reducing the risk of complications. The Digital AcuBlade micromanipulator takes the performance of Line-of-site CO2 laser free beam, to a whole new sphere of precision and controlled tissue management.

The Digital AcuBlade delivers nearly char free, and shaped cutting, vaporization, and ablation to precise size and depth. While lasing, the surgeon uses the special joystick to direct the scan pattern onto the tissue target. The scanner moves the laser beam faster than a human hand can, thereby minimizing heat built up in tissue and creating virtually no char. Precision is assured by the nearly char-free and bloodless visual field and reproducible treatment depth.

Digital AcuBlade unique features:

  • Maximum control over incision length, ablation area and treatment depth.
  • Replicated tissue interaction, customized to patient anatomy and the shape of the undesired tissue.
  • Reduced operating time compared to conventional CO₂ laser microsurgery.


CO2 Free Beam accessories are uniquely compliant with Lumenis free-beam surgical CO2 laser models that direct the laser energy through an articulated arm: AcuPulse DUO, AcuPulse, UltraPulse DUO and UltraPulse. Digital AcuBlade Brochure

Lumenis CO2 Laser Fibers

laser fibers

Lumenis’ CO2 laser fibers set the standard for durability, high energy delivery, and performance. The fibers are versatile, enabling surgeons to easily access difficult-to-reach anatomy by using one of the designated Lumenis handpieces, flexible endoscope or with robotically assisted technique. Lumenis CO2 laser fibers feature high, consistent energy transmission, renewable tip, and aiming beam. All features allows easy adoption, highly controlled and precise tissue interaction.

The CO2 laser fibers can be used to treat a wide variety of applications including Otolaryngology, Head & Neck, Otology and Gynecology. For Head and Neck, Transoral Laser Microsurgery, the CO2 laser fibers are revolutionary. While the TLM technique was perceived as a rigid surgical approach until recently, with the introduction of the CO2 laser fibers, it also represents flexibility: A Surgical approach where compliance to flexible endoscopy and robotic surgery is possible and treating precisely on hard to reach anatomy is achievable.

For Gynecology, the CO2 laser fiber is a game changer. The ability to treat delicately and in a flexible manner near critical structures is key to obtaining precise and controlled tissue interaction while maintaining the preservation of valuable organs.

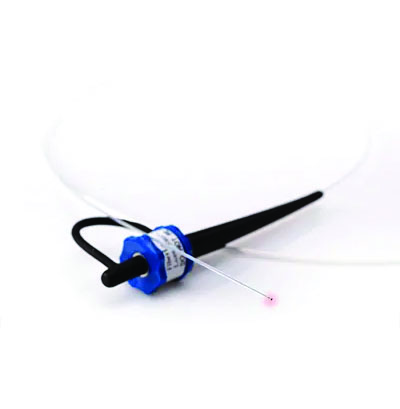

Single use CO2 Laser fiber

The FiberLase CO2 laser fiber is a class of its own. A high quality, durable & flexible fiber served with a collection of dedicated operational tools.

FiberLase allows you to expand from the operating room to the outpatient environment save costs, reduce the risks of general anesthesia and enable periodical treatments of recurring conditions.

Exclusive features:

  • Aiming Beam: precise targeting and great visualization of treated tissue
  • Easy to use: short learning curve and easy adoption to the surgical sphere.
  • Renewable Fiber Tip and Durable Use: The tip can be cleaved and revived during use, facilitating a smooth operation and cost effectiveness.
  • 2M Long Fiber: greater maneuvering and flexibility in the surgical site.
  • High Energy transmission: for reproducible and highly controlled tissue interaction

FibreLase Brochure
